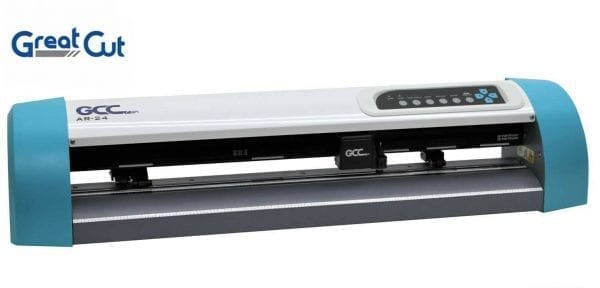

AR-24 Vinyl Cutter
With GreatCut Software
Vinyl Cutter Plotter
With it’s sleek style, the AR-24 performs perfectly in cutting with its optimized cutting speed and force and lead to a stunning cutting quality, yet it is priced at a startup level and is worthy of return on investment.
The GCC AR-24 is built to achieve the optimized cutting abilities with the maximum of 15.7ips (400 mm/sec) cutting speed and 250 grams cutting force; moreover, the cutting width of up to 23.6″ support a wide range of applications. It is equipped with a stable drum that can guarantee 1 meter tracking to ensure quality outputs and saves you from wasted material and cost.
The GCC AR-24 includes a “one click” Windows driver that allows sign makers to edit signs from CorelDraw and output directly to AR-24. It is very simple and easy to make signs with AR-24.
We advise not to use USB 3.0 when using these machines.
Features
- Guaranteed 1 meter tracking
- Working area: cutting width 24″
- 2 pinch rollers
- Pen holder
- Dual port connectivity
- User friendly control panel
- Compatible with Windows 7 and above & MAC OS X 10.6 and above.
Specifications
- Operational Method Roller-Type
- Max. Cutting Width 600mm (23.6″)
- Max. Cutting Length 50m (164′)
- Max. Media Loading Width 71.9cm (28.3″)
- Number of Pinch Rollers 3
- Acceptable Material Thickness 0.8mm (0.03″)
- Drive Motor Stepper motor
- Cutting Force 5~250 g
- Max. Cutting Speed 552 mm /sec (21.7 ips) (at 45° direction)
- Offset 0~1.0 mm (with an increase of 0.025mm)
- Memory Buffer 1 MB
- Interfaces USB 2.0 (Full Speed), Serial (RS-232C)
- Type of Command HP-GL, HP-GL/2
- Mechanical Resolution 0.012 mm
- Software Resolution 0.025 mm
- Distance Accuracy ±0.254 mm or ±0.1% of move, whichever is greater
- Repeatability ±0.1mm
- Guaranteed Tracking 1M
- Automatic-Aligning System(AAS II) N/A
- Over Cut N/A
- Curve & Arc Smoothing Yes
- Configurable Origin Yes
- Test Cut capability Yes
- Tangential mode N/A
- Repeat Yes
- Copy N/A
- Diameter of Blade 2.5 mm
- Control Keys 10 Control keys and 2 LED
- Power Supply AC adapter, 24V DC (1.67A)
- Power Consumption 65.5 watts
- Operation Temperature 15° C~30° C / 60°F~86° F
- Operation Humidity 25%~75%
GreatCut Software
Designed for great performance and to support all GCC cutters, GreatCut software offers effortless production to assist users to complete print and cut solutions without changing the workflow or software. With the user-friendly interface, users can add the registration marks, and cut images with ease.
Contents Include
- 1 x AR-24 Cutter Plotter
- 1 x User’s Manual
- 1 x Power Cord
- 1 x Serial Cable
- 1 x Installation DVD
- 1 x Cutting Pad
- 1 x Tweezers
Warranty
12 Month RTB (Return to base) Warranty
UK Standards
All products are CE marked and are UK standards approved
