Product Features
1. Pneumatic Design – Effortless Operation: The air-powered mechanism makes pressing easier and smoother, reducing manual effort.
2. Dual Workstations – Double the Efficiency: Two working tables allow continuous operation, saving time and boosting productivity.
3. Stable Heat Transfer – No Shifting or Vibration: With a fixed base plate and a sliding heating plate, your designs stay perfectly aligned during pressing.
4. Built-in Stand – No Extra Table Needed: Comes with its own sturdy stand, offering a convenient all-in-one setup.
5. Enhanced Safety Features: Equipped with an emergency stop button and dual start buttons to ensure the operator’s hands remain in a safe position at all times.
6. Smart LCD Control Panel: Features precise temperature control, switchable temperature units, and built-in calibration for accurate, consistent results.
Product User Guide
1. Place the material on the working table.
2. Connect the power plug and turn on the power.
3. Set time & temp you want with temp/time gauge get required numbers.

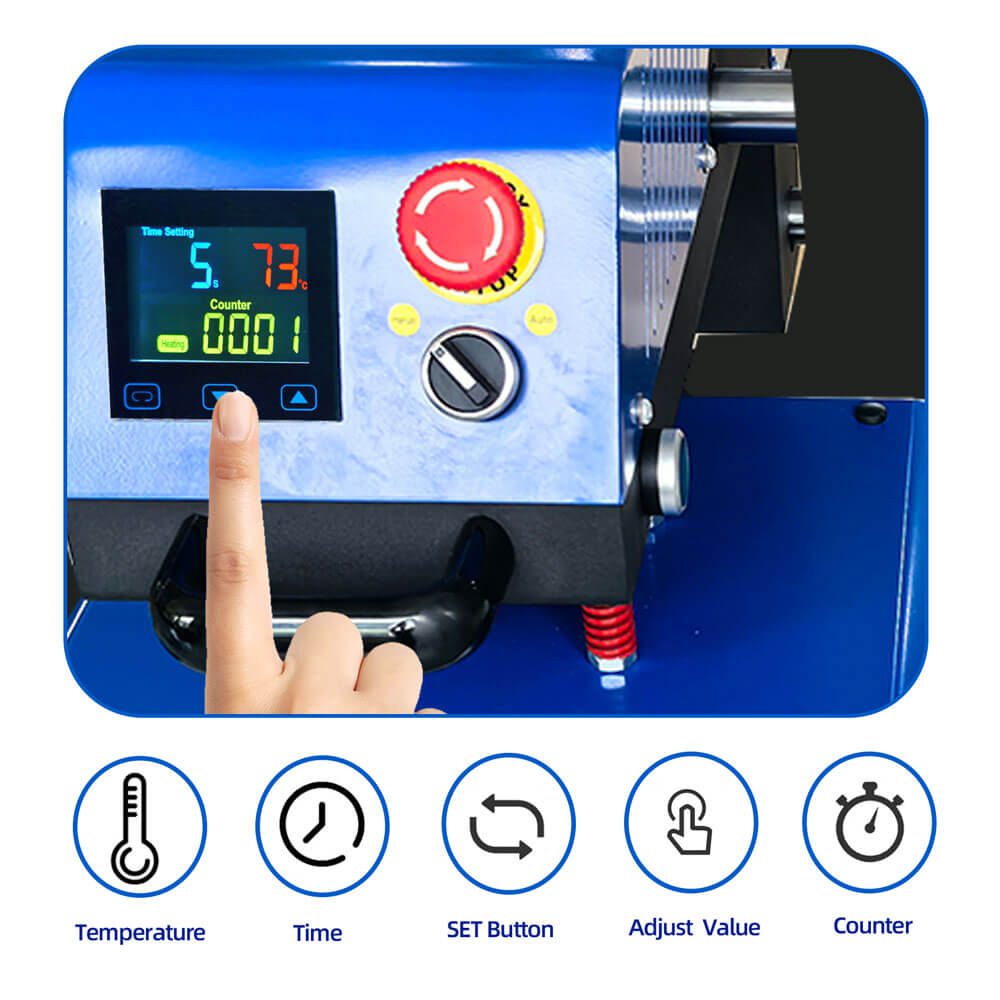

Press SET, then press up and down to set temperature
Press SET again, then press up and down to set time
COUNTER 0000 means how many times you have printed
You can press CLEAR for few seconds to turn it back to 0000
Green number 1 means Pattern 1, you can set and save 5 patterns
Each pattern have different temperature and time
You can click CLEAR to Switching mode
4. The temp for heating plate will start to rise up,when it reaching temp you set, place the material on the working table and close the handle.
5. The controller will sound when reaching time you set, release the handle andtake out the material.
Specifications
Model: CH2520
Suitable for: Cap, Hat, Cotton Clothing, Linen Fabric, Chemical Fibre Fabric, Pillows, etc.
Power: 1600W / 2300W
Voltage: 220V
Temp. Range: 0 to 399 ℃
Time Control Range: 0 to 999 seconds
Material: Heating plate aluminium + other iron parts
Color: royal blue
Printing Area: 38 x 38 cm / 40 x 50 cm
Net Weight: 110kg / 130kg
Package Content
1 X Heat Press Machine
1 X Two high-temperature sponge pads
1 X Two silicone pads
1 X Two heat-resistant isolation sheets
1 X Two One user manual
1 X One set of stand legs
